Underground Cabinet Lifting ESN-2

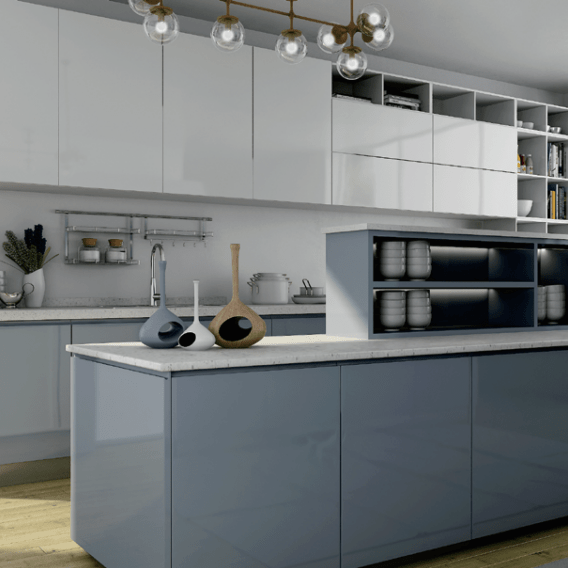

Movable Kitchen Cabinet Systems
FlexCabinet Platform ESN-2 with SafeAgilityTM Technology
Heavy load and cost-effective movable kitchen cabinet solution with MagicTouchTM interaction
Specification
| Parameter | Value |
|---|---|
| Dynamic Load Pull (kg/Ib) | 100/224 |
| Static Load (kg/Ib) | 100/224 |
| Input Voltage (VDC) | 24 |
| Speed at Full Load (mm/s)(in/s) | 12/0.47 |
| Stroke Lenth (mm/in) | 100-400/4-11 |
| Color | White |
| Mounting | Fix the mounting plates by screws |
| Overload Protection | Yes |
| Limit Switch | Built-in |
| Duty Cycle | 10% max 2 min continuous operation |
| IP Grade | IP43 |
| Opearting Temperature | +5℃~+40℃ |
| Optional Features | Hall sensor |
