Cabinet Lifiting B2
Movable Kitchen Cabinet Systems

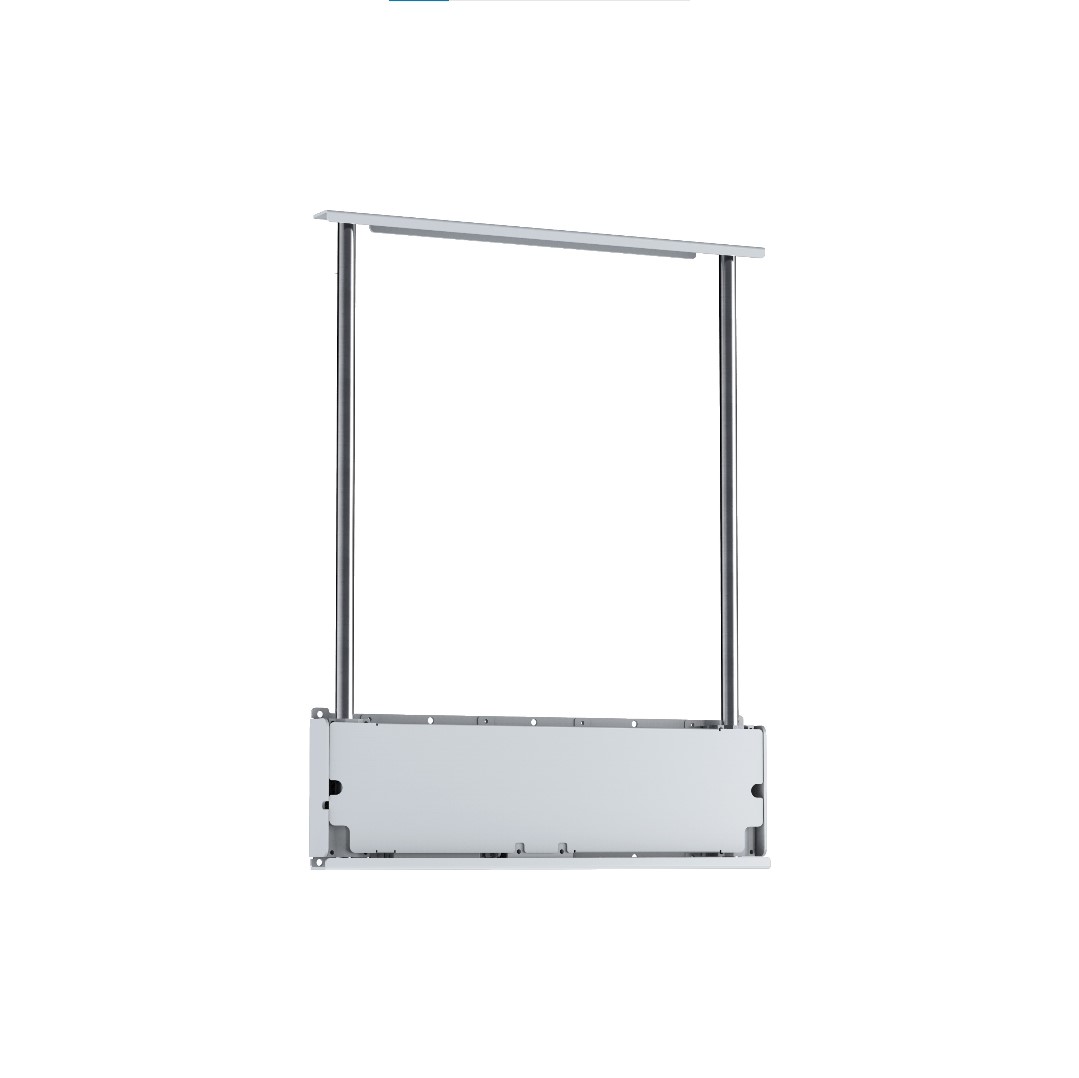

FlexCabinet Platform B2 with SafeAgilityTM Technology
Heavy load and cost-effective movable kitchen cabinet solution with MagicTouchTM interaction
Demonstration Video
Installation Video
Specification
| Parameter | Value |
|---|---|
| Dynamic Load Pull (kg/Ib) | 35/78 |
| Static Load (kg/Ib) | ≥35/78 |
| Input Voltage (VDC) | 24 |
| Speed at Full Load (mm/s)(in/s) | 60±10%/2.36±10% |
| Current at No-Load (A) | ≤4.0 |
| Current at Full Load (A) | ≤4.0 |

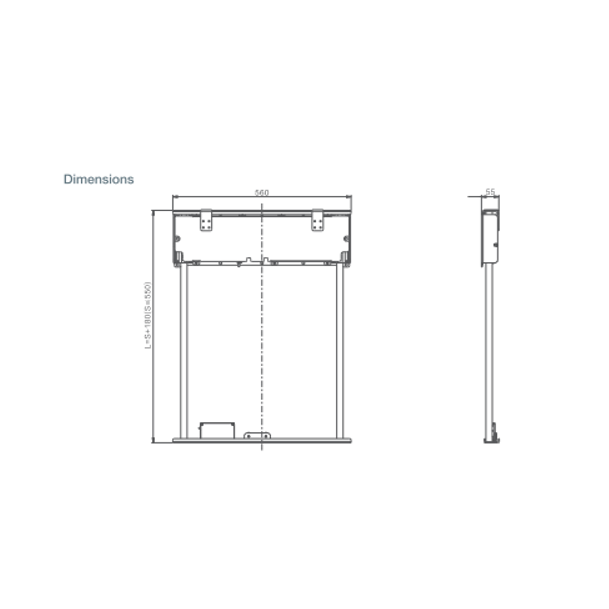

| Stroke Lenth (mm/in) | 550±5/21.65±0.2 |
| Color | Silver |
| Mounting | Fix on the back panel of the outer cabinet by screws |
| Overload Protection | Yes |
| Limit Switch | No |
| Duty Cycle | 10% max 2min continuous operation |
| IP Grade | IP43 |
| Opearting Temperature | 0℃~+50℃ |
| Optional Features | Hall sensor |

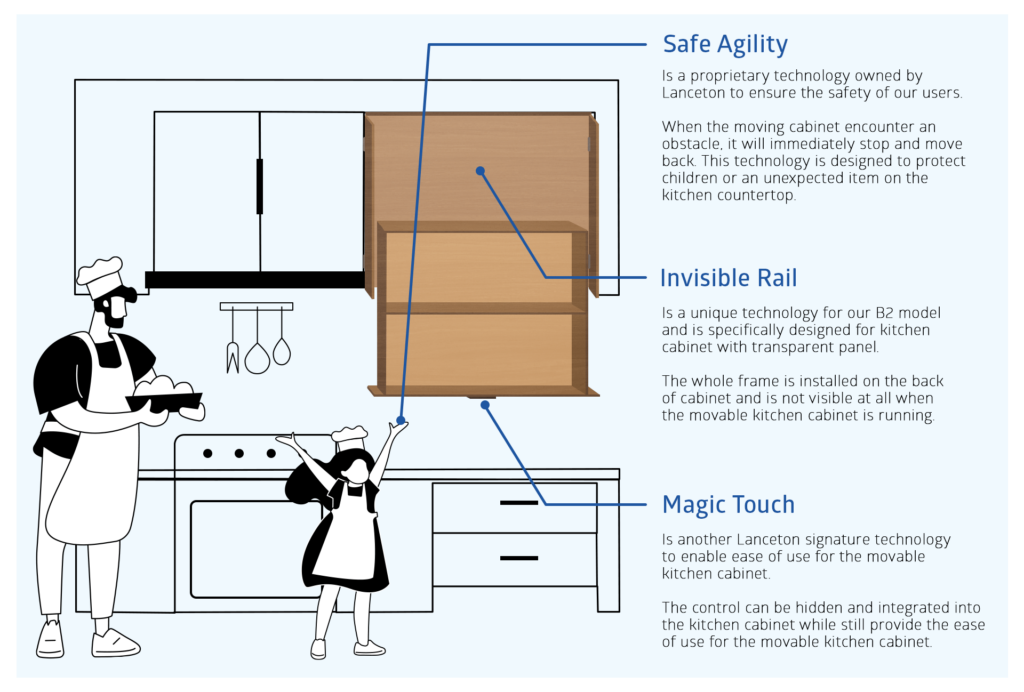

Key Technologies
Manual
